Jared should be on a medium SB5 if you go by Yeti’s sizing
recommendations but he prefers the large frame for its added
reach—it provides plenty of room to move, even with a short 50mm stem.
With a 434mm reach, the medium Jekyll is on the large side for Jerome’s 169cm height but he prefers the roomier feel when running a relatively short 50mm stem. Naturally he uses his own design
Truvativ Clementz
carbon bar—it
measures 750mm
wide.
Sam runs a relatively stock 160mm travel Nukeproof Mega AM. With plans to compete in some EWS events he may pick up on a few bike setup tricks along the way but he openly admits being pretty new to this side of the sport.
“The stock bike just works and it’s all I know at this point.” As
pictured Sam’s bike weighed in at 14.3kg—a good kilo or so
more than the bikes ridden by enduro specialists like Graves
and Clementz.
Specialized offers the Enduro in both 29-inch and 27.5 wheel size options. Troy is running the 27.5/650B version; at 171cm he’s not exactly the tallest and the smaller wheels match with his Demo DH bike. While it’s loaded with high-end gear, there’s nothing on it that you can’t buy and it weighed in at 13kg.
As the reigning Enduro World Series Champion, Graves is currently the man to beat—and that doesn’t happen very often. Despite the sharp competition at Mt Buller, Graves won five of the six timed stages (he punctured in the sixth stage) and took a comfortable overall win.

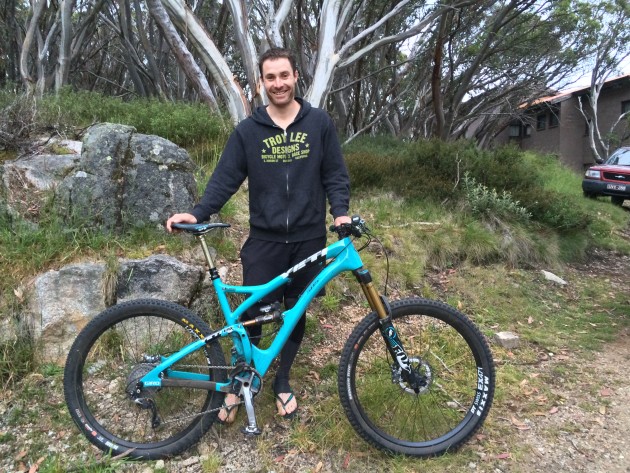

When it comes to defending his World Series title for 2015, Graves expects to be riding the 152mm travel Yeti SB6C at most events, but for Buller he was on a SB5C. This is his off-season bike; Graves feels the 127mm platform better suits his home trails in Toowoomba, and he also felt it was the most appropriate choice for Mt Buller. With less travel than the SB6C, it’s more agile and fun on tight and twisty trails.
While it’s short on travel at the back, Jared chooses to run a 160mm travel Fox 36 fork up front. He started out with the stock 140mm fork but wanted a slacker head angle with a taller front end. Now with the 36 fitted, he’s got a 65.8-degree head angle along with the greater steering precision from the bigger fork. Jared also says that he generally prefers a bit of extra travel up front and notes that it lengthens the wheelbase and lifts the bottom bracket a touch; “It gives me all the awesome little things that suit my style better than the stock setup.” As for running such a big fork on a lightweight trail bike (the frame itself is XC weight at just 2,310g), well the axle to crown height of the 160mm Fox 36 is actually less than a 150mm travel Fox 34, so this combination is deemed acceptable by Yeti. Apparently Jared tried this setup first on the SB5 and now all the bosses at Yeti are sporting similar setups. Overall he says it makes the bike more capable on the big stuff without really affecting its efficiency. Jared likes to shed a few grams wherever possible, and at 12.5kg as pictured his SB is impressively light. However come race season, his mechanic Shaun Hughes has a big say. Shaun acts as his ‘voice of reason’ and turns him away from any potentially risky component choices. Between them they are a well-oiled team and 2015 looks set to be another big year for the talented Aussie all-rounder.
Jared should be on a medium SB5 if you go by Yeti’s sizing recommendations but he prefers the large frame for its added reach—it provides plenty of room to move, even with a short 50mm stem.This bike has the standard Thomson dropper post lever but come race season he’ll use a modified XTR shift lever to do the job. Due to the internal routing, mechanic Shaun Hughes has pre-cut the wire to length and solder a new fitting on at the gear lever end. The carbon Renthal Fatbar is 740mm wide and he’s running the lighter ‘Race’ version of the XTR brakes.Reverse mullet style; short travel at the rear and party time up front with a 160mm Fox 36 fork. The DT Swiss EX 471 rims are tubeless ready with a 25mm inner width. They are built with 28 DT Aerolite spokes for a lightweight but suitably sturdy wheel setup.Graves is a self-coached cyclist and he takes a very serious and analytical approach to his riding with Stages power metres fitted to most of his bikes.At this stage his Di2 electronic hadn't arrived, so this bike had 10-speed XTR with a single 34T Black Spire chainring and an 11-36 cassette.
Jerome Clementz
The concept of gravity enduro is simple enough; you head out for a ride with your mates, have a chat as you pedal up the hills, then race your buddies for bragging rights on the descents—it’s simple enough and many of us have been doing it for years.
What's relatively new for Aussie riders is the concept of racing this format. While we are steadily getting a handle on it, the French have been racing this format for more than a decade. And the biggest name in enduro racing is (arguably) Jerome Clementz. The diminutive Frenchman has been winning enduro-style events since 2001 and took the title in the inaugural Enduro World Series.
Over the years Jerome has dialled his bike setup for enduro events and it features a few neat custom tweaks. He’s also involved in product development for a number of sponsors and his Cannondale was fitted with a number of prototype parts. At just on 13kg his Jekyll is pretty light for a 160mm bike with a dropper post (especially when you consider he’s running 1kg tyres), and this setup is reliable enough to run all year round on any course. The only tweaks come with tyre/wheel selection and chainring size.

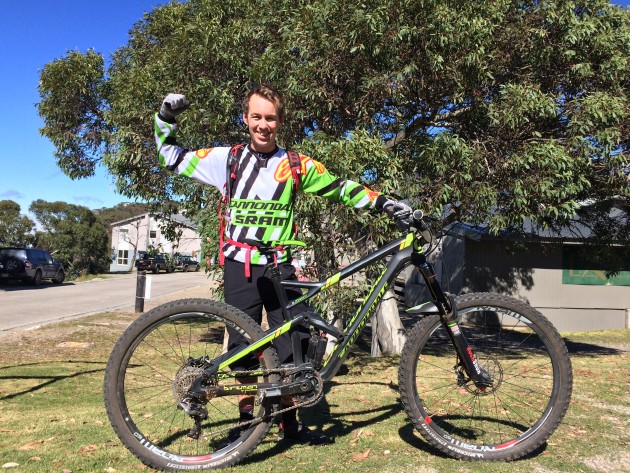

With a 434mm reach, the medium Jekyll is on the large side for Jerome’s 169cm height but he prefers the roomier feel when running a relatively short 50mm stem. Naturally he uses his own design Truvativ Clementz carbon bar—it measures 750mm wide.The Jekyll features two travel settings; 95mm or 160mm. These modes are usually swapped via a bar mounted lever but Clementz employs a left-hand grip shifter instead—he finds it easier to use. The Reverb dropper post lever is underneath on the left side of the handlebar and Jerome also runs his brake levers up a bit higher than most (i.e. not angled down as much); he feels this works better on steep descents.At a glance they may look like Guide brakes but they are yet-to-be named SRAM model that Jerome is testing. The four-piston calliper is different to the current Guide and the lever blade is carbon. We can only guess at what they are working on as Jerome wouldn’t let any secrets slip. Aside from that he runs 180mm rotors all round and was using a pair of spacers under the front calliper rather than the regular one-piece adaptor.The XX1 cranks are fitted with SRAM’s new direct mount chainring. It saves around 50g over the regular chainring/spider combo and Jerome says it’s a bit stiffer too. It also makes chainring swaps much slower but that just keeps the team mechanic entertained! He typically runs a 34 ring when there are XC style liaison stages (like Mt Buller) and fits a 36-tooth chainring for events with lift assistance.The Michelin Wild Gripper tyres have a prototype compound; it’s meant to deliver consistent performance whether it’s hot or cold. For reliability he always runs downhill casing on his tyres. Most of the time Jerome uses the alloy Roam 50 wheels with a 21mm internal rim width. Sometimes he opts for the Rail front wheel (23mm internal) but prefers to have a skinnier rim on the rear. “I’ve tried wider rims but they’re heavier and I feel they are less precise for racing – for me the wider rims are more for trail riding and comfort due to the larger air volume that they provide.”
Sam Hill – Nukeproof Mega AM
In the world of mountain biking you’ll struggle to find a bigger name than Sam Hill. It may be a few years since he’s won a World Championship title but for a few years there he dominated the sport of downhill like no other, winning World Cups by 10 or 15 seconds when there’s normally fractions of a second separating the top contenders.
After winning two World Cup events in 2014, Sam’s prime focus remains on downhill but he also has plans to compete in some gravity enduro events this year. “We’re doing four Enduro World Series events; the first two and the last two. They look like fun events and it’ll help with fitness for downhill as well as getting some extra coverage for the team.”
Sam also kicked off the year by doing a few National Series XC races. “It’s not often that Western Australia gets a national round, so I wanted to go and support it. Besides, it grows old doing the same thing over and over, so it’s always good to mix things up. I’m certainly keen to give enduro a good crack at the races that I do.”

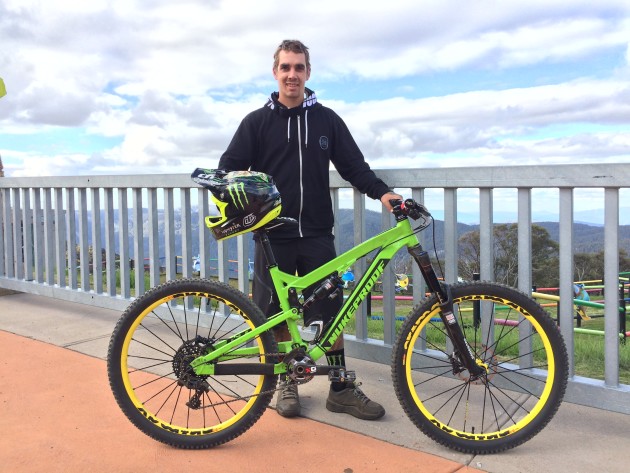

Sam runs a relatively stock 160mm travel Nukeproof Mega AM. With plans to compete in some EWS events he may pick up on a few bike setup tricks along the way but he openly admits being pretty new to this side of the sport. “The stock bike just works and it’s all I know at this point.” As pictured Sam’s bike weighed in at 14.3kg—a good kilo or so more than the bikes ridden by enduro specialists like Graves and Clementz.With an alloy frame and a simple single pivot suspension system, this bike shows that you don’t need the latest in high-tech plastic wizardry to create a competitive MTB.Flat pedals win medals in downhill and Sam sees no reason to change for gravity enduro racing. There was certainly lots of pedalling at Mt Buller and he placed fifth, so I doubt his pedal choice was an issue.Nukeproof branded parts feature throughout with 750mm wide alloy bars and a 50mm stem. The Reverb dropper remote resides underneath the bars on the left hand side; the best place to put it if you’re running a 1X drivetrain.You’d expect somebody like Sam to be gifted with all of the best gear but his bike was running an X1 derailleur from SRAM’s more affordable 1X11 groupset.
Troy Brosnan – Specialized Enduro
At just 21, Troy already has two World Championship downhill titles to his name and last year he won his first World Cup in the senior ranks—we bet it won’t be his last.
This year he will be racing a couple of Enduro World Series events as they are good training for downhill. Troy also mentioned that Specialized wants the downhillers to mix with the enduro guys to help progress that side of the sport.
“I’m somewhat interested in enduro but I wouldn’t consider crossing over until much later in my career, but it’s good fun and good training.” Enduro may just be training for Brosnan but there’s no doubt he’s got the talent and fitness to perform. He placed second behind Graves at Mt Buller and beat all of the other enduro specialists.

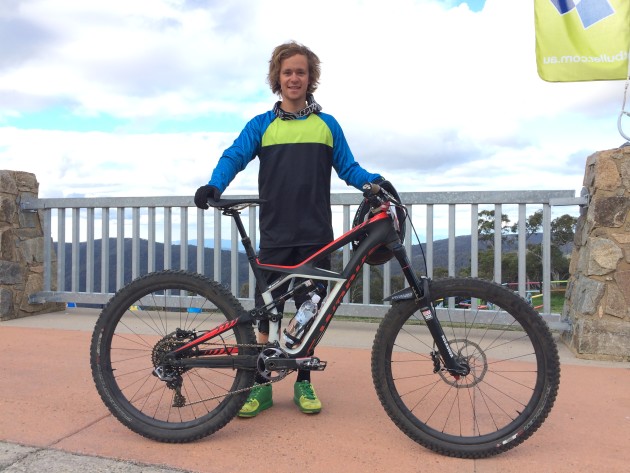

Specialized offers the Enduro in both 29-inch and 27.5 wheel size options. Troy is running the 27.5/650B version; at 171cm he’s not exactly the tallest and the smaller wheels match with his Demo DH bike. While it’s loaded with high-end gear, there’s nothing on it that you can’t buy and it weighed in at 13kg.Specialized offers the Enduro in both 29-inch and 27.5 wheel size options. Troy is running the 27.5/650B version; at 171cm he’s not exactly the tallest and the smaller wheels match with his Demo DH bike. While it’s loaded with high-end gear, there’s nothing on it that you can’t buy and it weighed in at 13kg.It seems that all the top riders run a single chainring setup and the vast majority have a top guide fitted. Troy’s bike had a very tidy little guide that mounts to the front ISCG tabs—apparently it now comes as a stock inclusion on the Enduro models. Also note the Specialized EMT tool tucked underneath the bottle cage—a handy way to ensure that you’re never caught without a mini-tool on the trail.The HT X1 pedals are another component choice that’s shared with his DH bike. They feature a large and flat platform with five replaceable pins—not unlike a proper flat pedal. Once clipped in they provide plenty of retention force to avoid unwanted release.While many pro riders seem to be opting for conservatively narrow rims, Troy is running Roval Traverse SL Fattie wheels. They are 30mm wide internally and feature a hookless design. Thanks to the carbon rim construction they are very light (approximately 1,550g) and the added width helps to keep the tyre stable at lower tyre pressures, offering better traction and cornering control.The alloy Renthal Fatbar features a 38mm rise; that’s the highest option offered by the brand. He uses the same bars on his downhill bike and Troy feels the taller stance affords better control when cornering. Obviously it’s not as good for climbing but you don’t race uphill in enduro!
